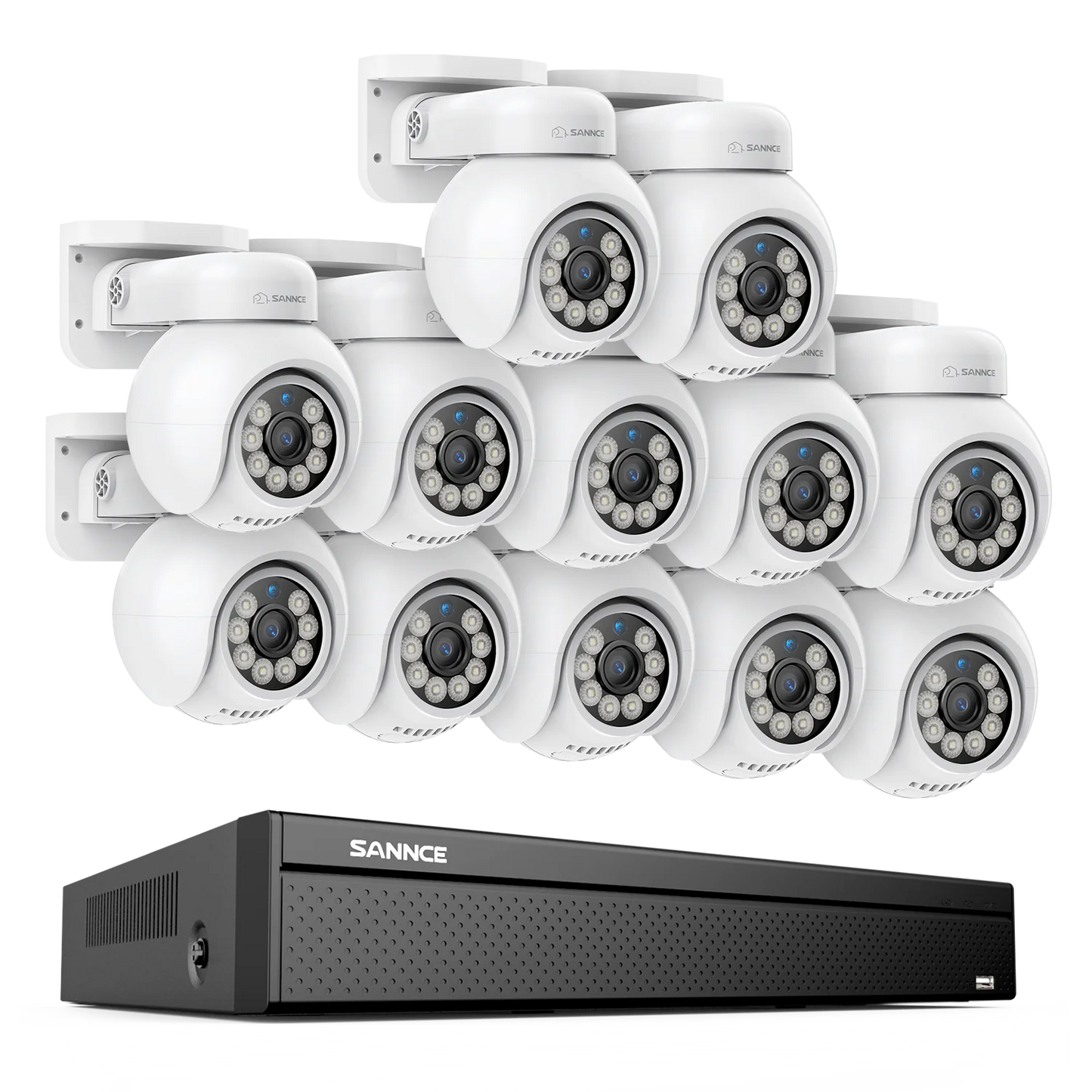

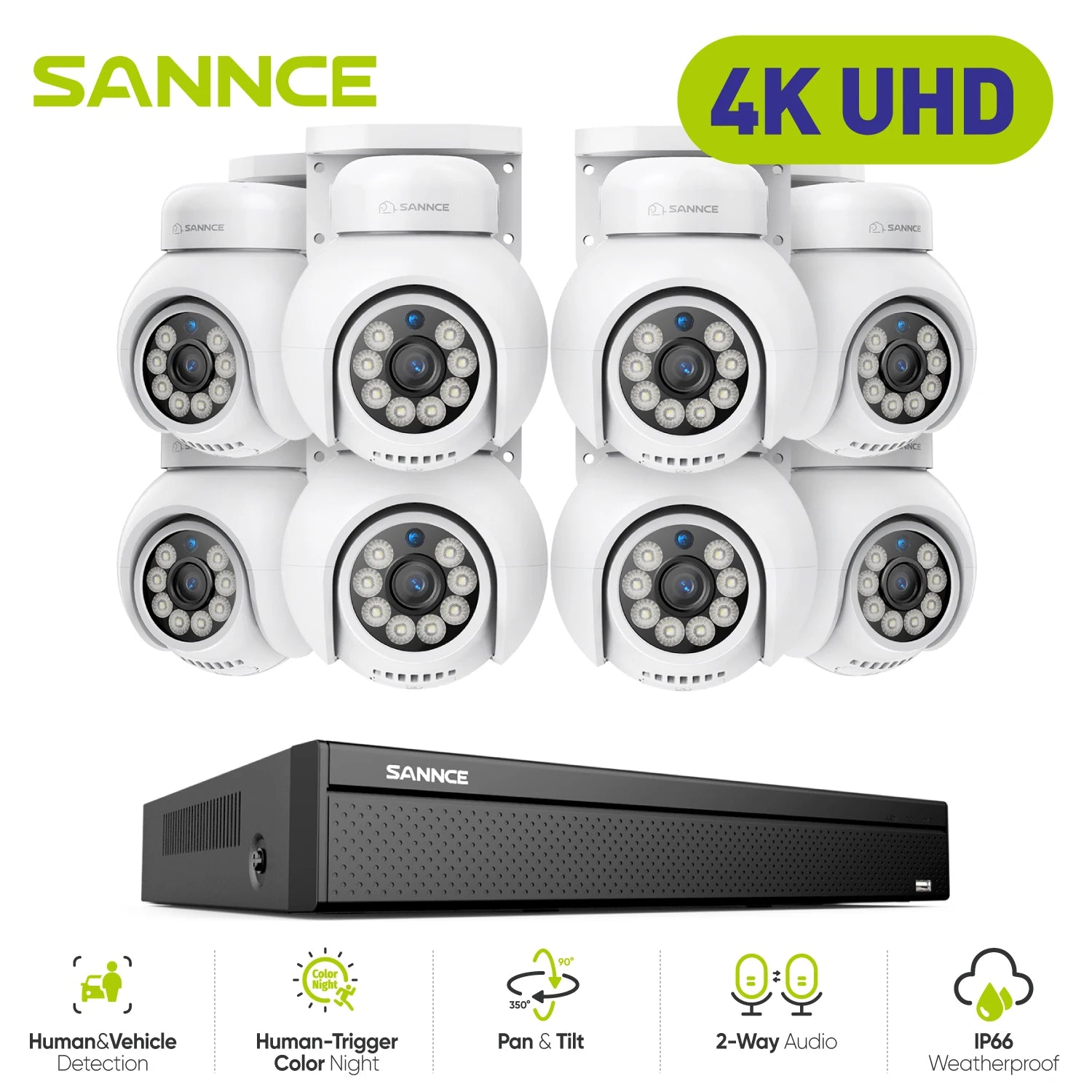

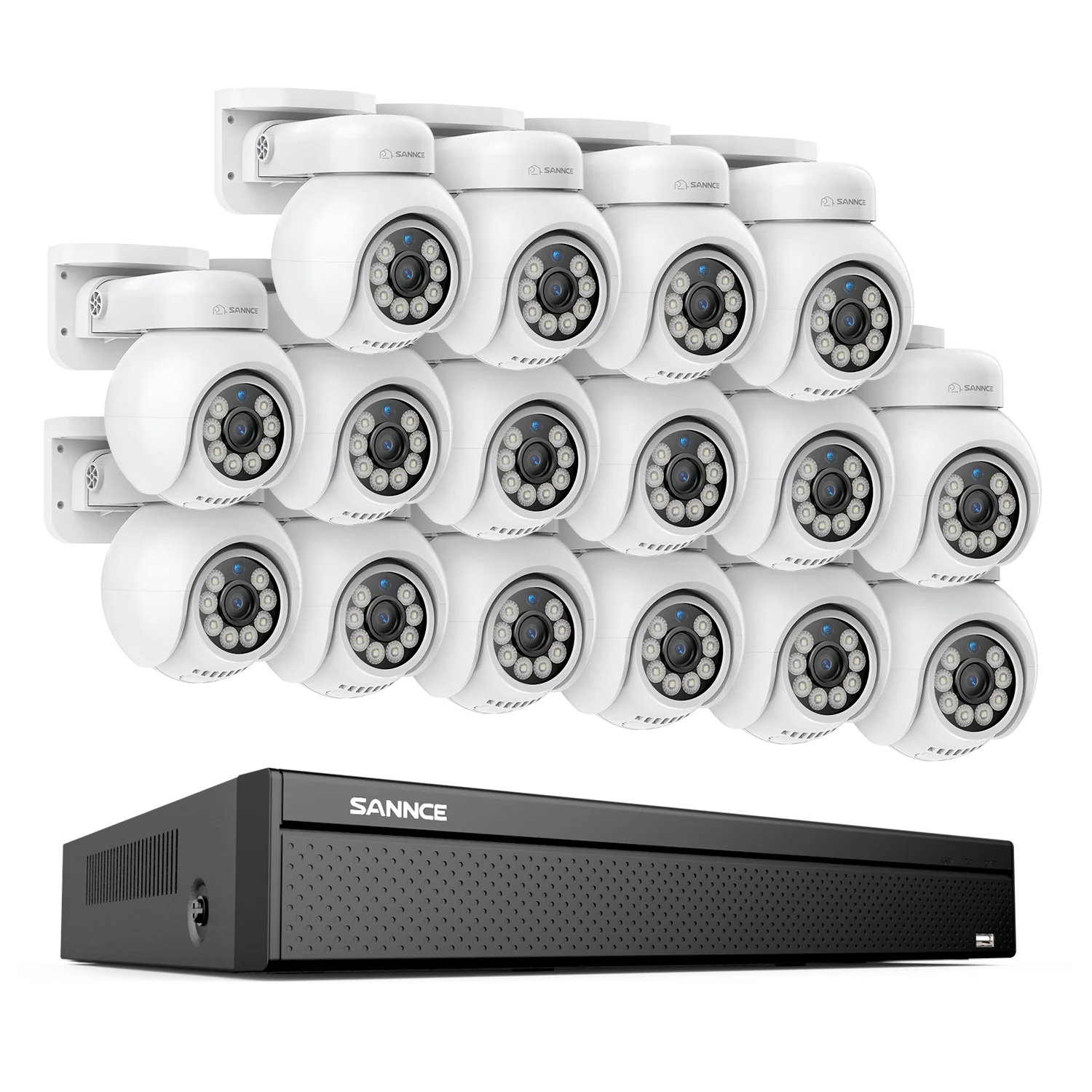

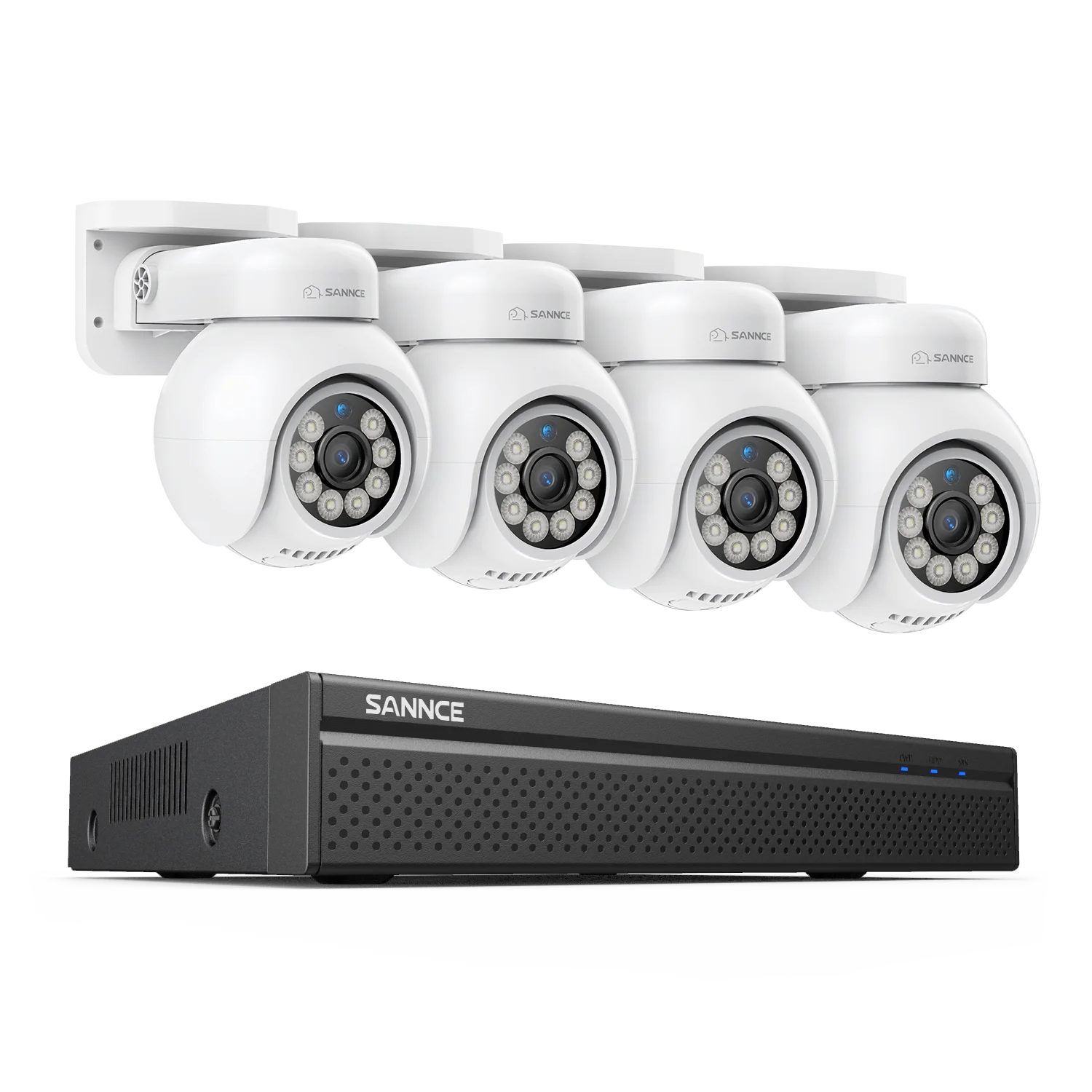

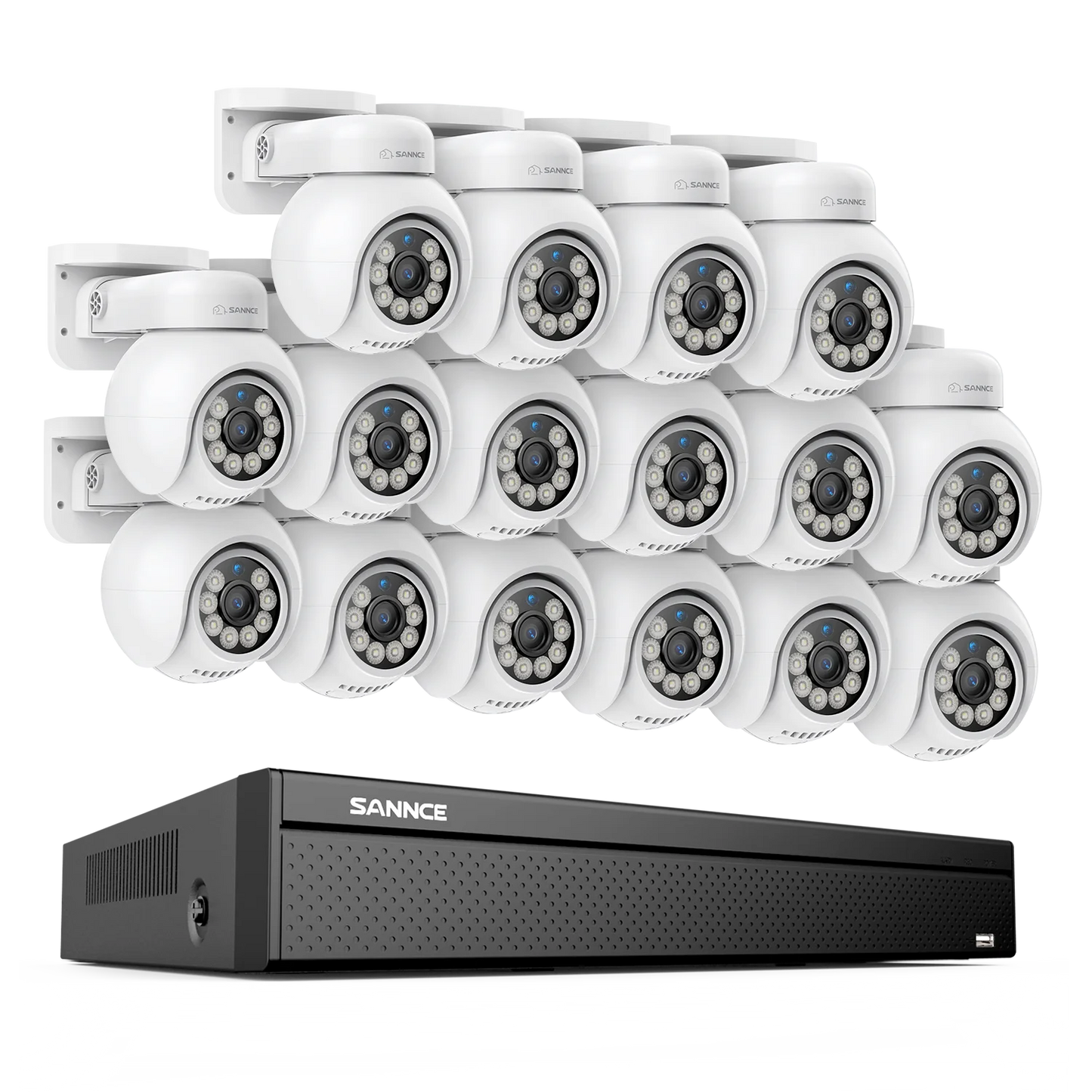

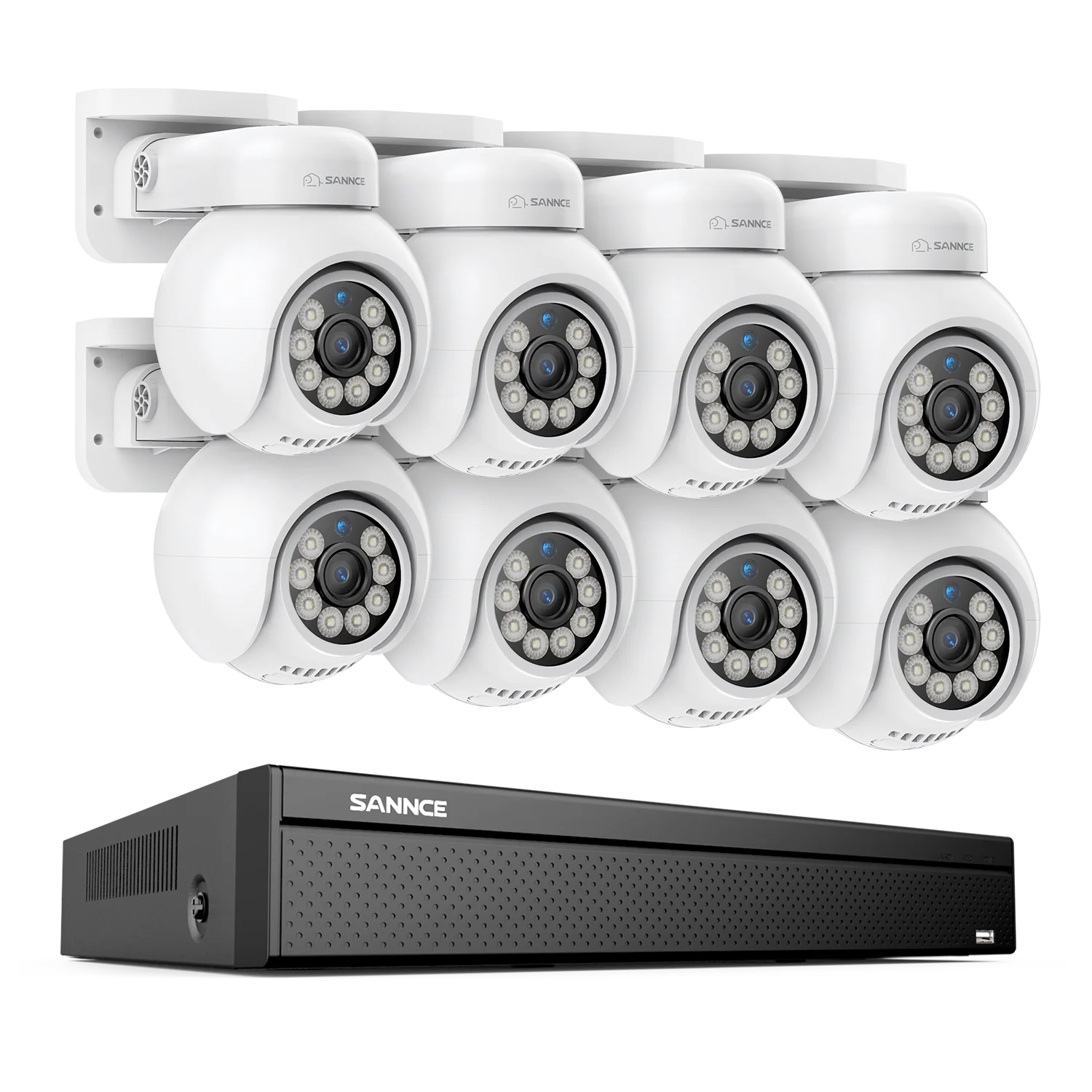

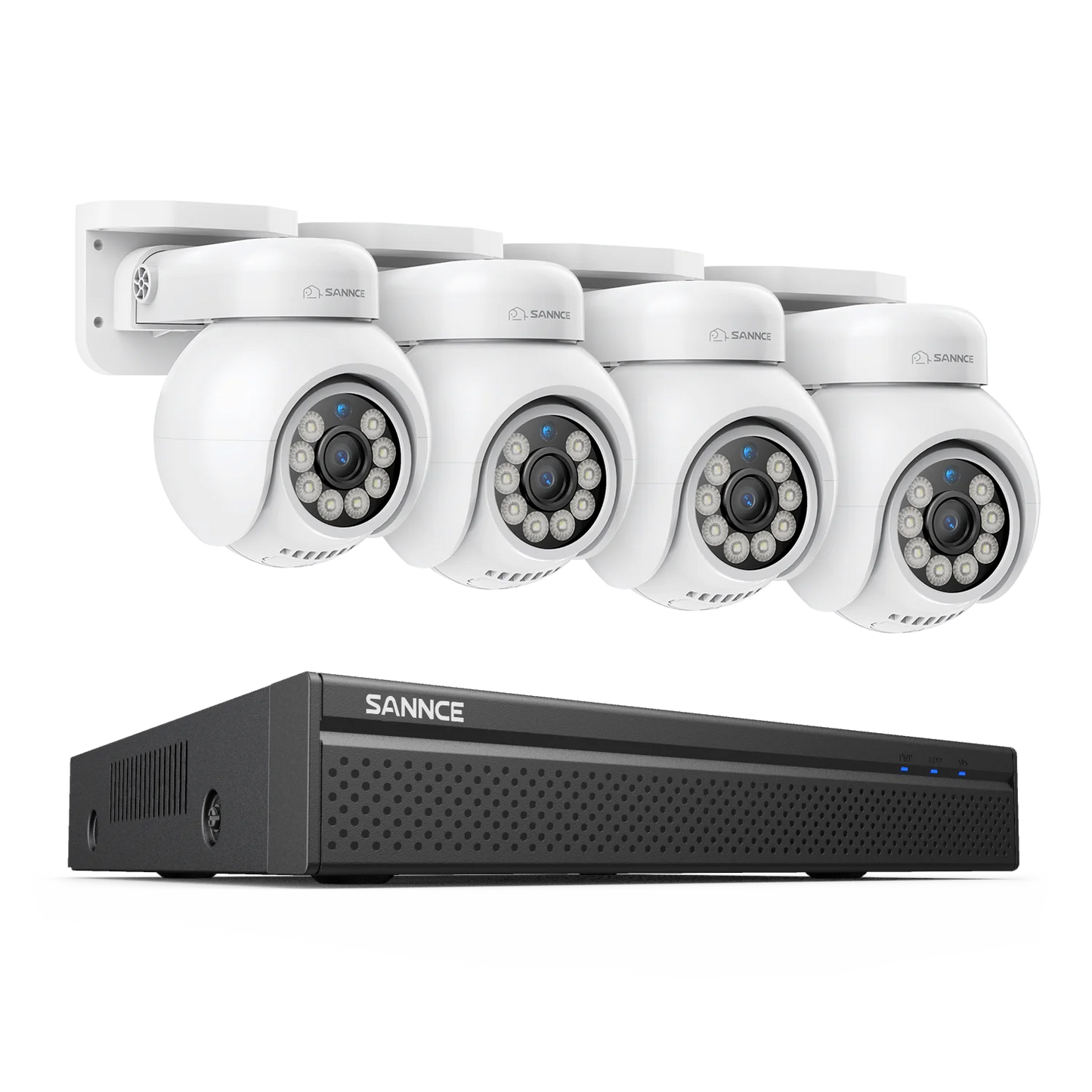

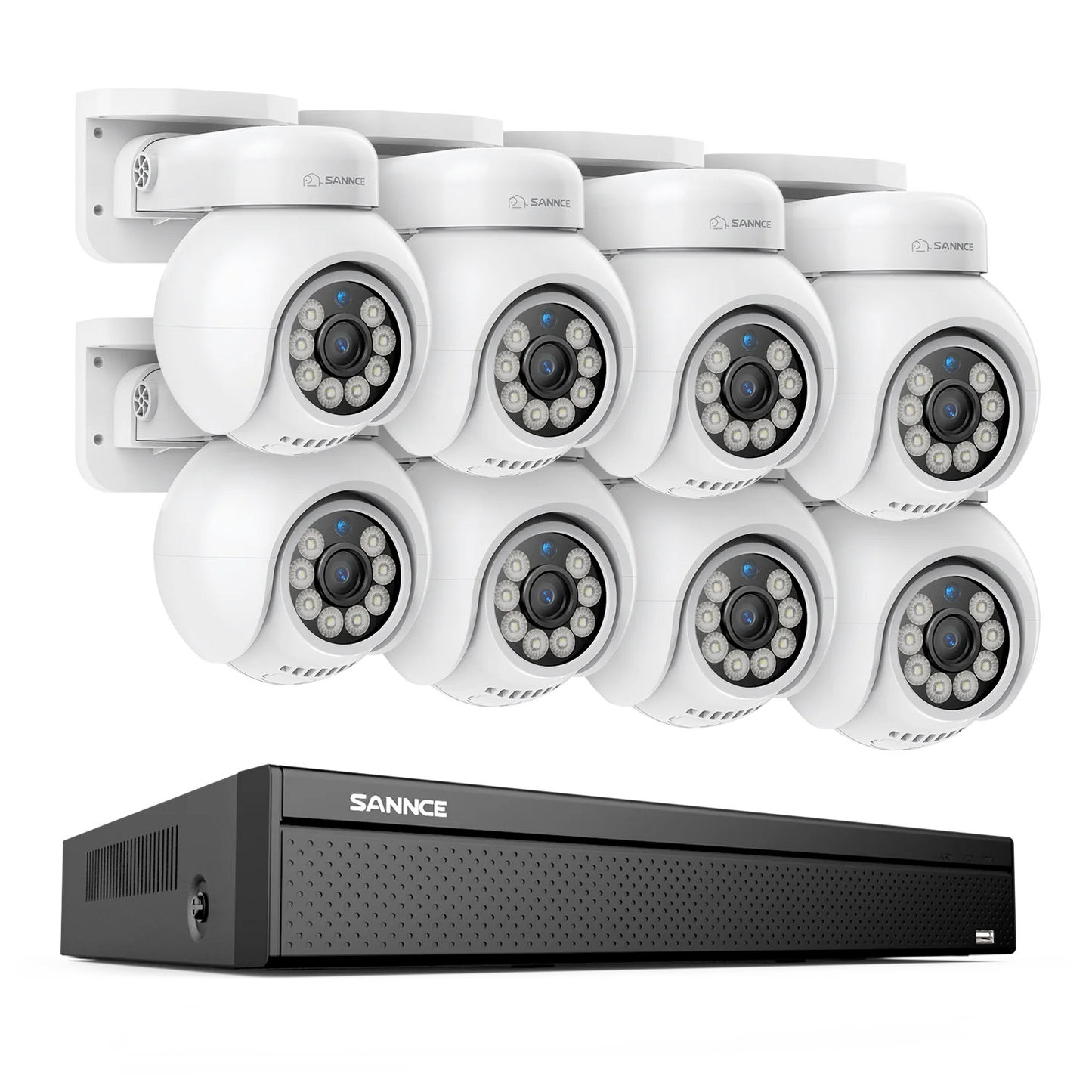

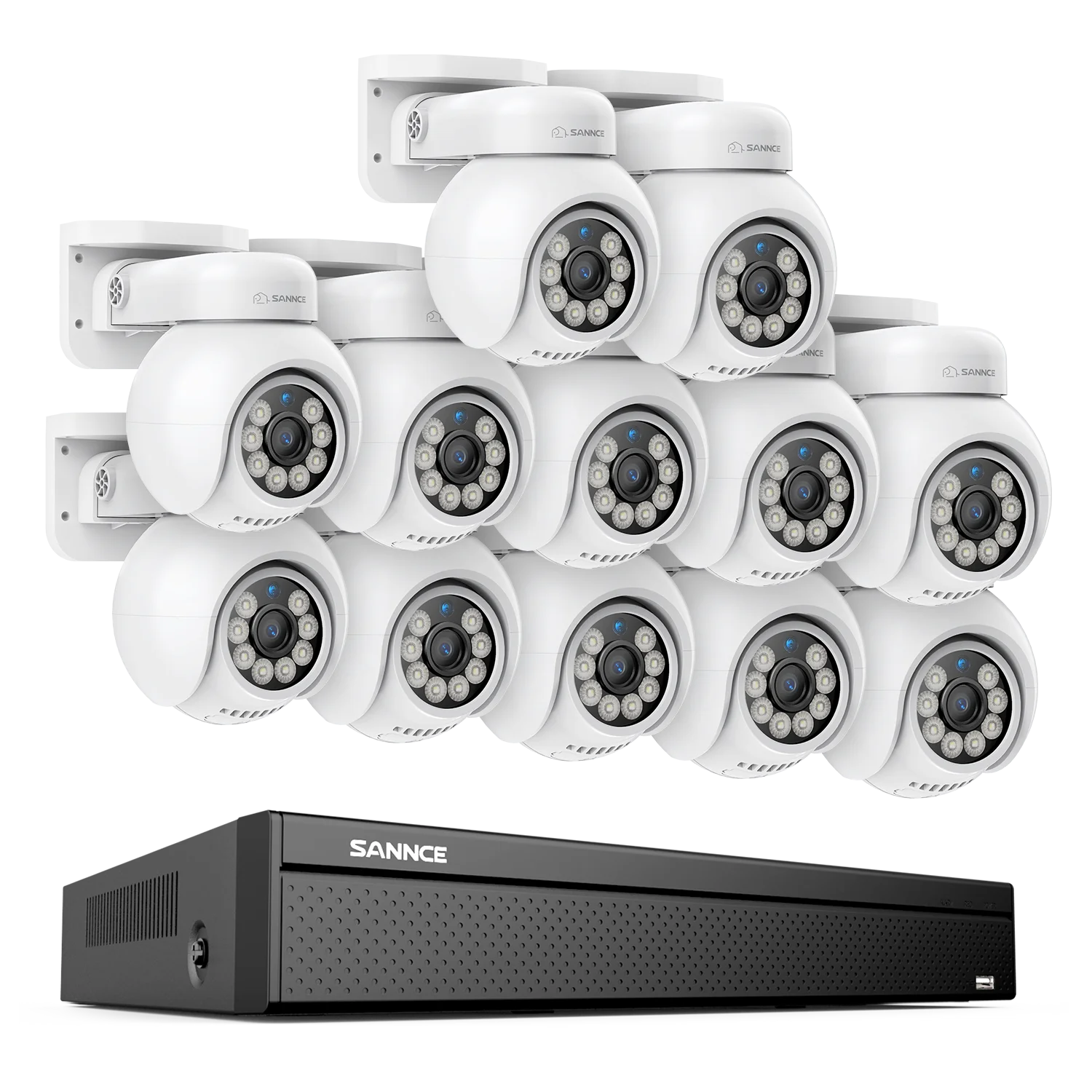

SANNCE 4K UHD 8MP POE Security Camera System 16CH NVR color Night Vision Camera ONVIF,4K Outdoor Security PT IP Cameras
SANNCE 4K UHD 8MP POE Security Camera System 16CH NVR color Night Vision Camera ONVIF,4K Outdoor Security PT IP Cameras
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: SANNCE
Cable Length: None
Certification: CE
High-concerned chemical: None
Model Number: N96PBK-91FT
Night vision distance 20m: Full color distance 10m
Origin: Mainland China
PCS of Camera: 16pcs,4PCS,8PCS
Pan and Tilt: level: 350° ,vertical: 90 °
Resolution: 8MP
Support: Onvif
TV System: NTSC,PAL
Two-way voice intercom: built-in microphone and speaker
Video Input: 16 Channel
type 1: outdoor surveillance camera
type 2: poe camera 4k
type 4: poe camera system
★ 8MP high definition live viewing & recording
★ 8MP high definition playback channel
★ Support human detection
★ Vehicle shape detection, face capture(requires IPC support)
★ Up to 16 channels, built-in PoE inputs

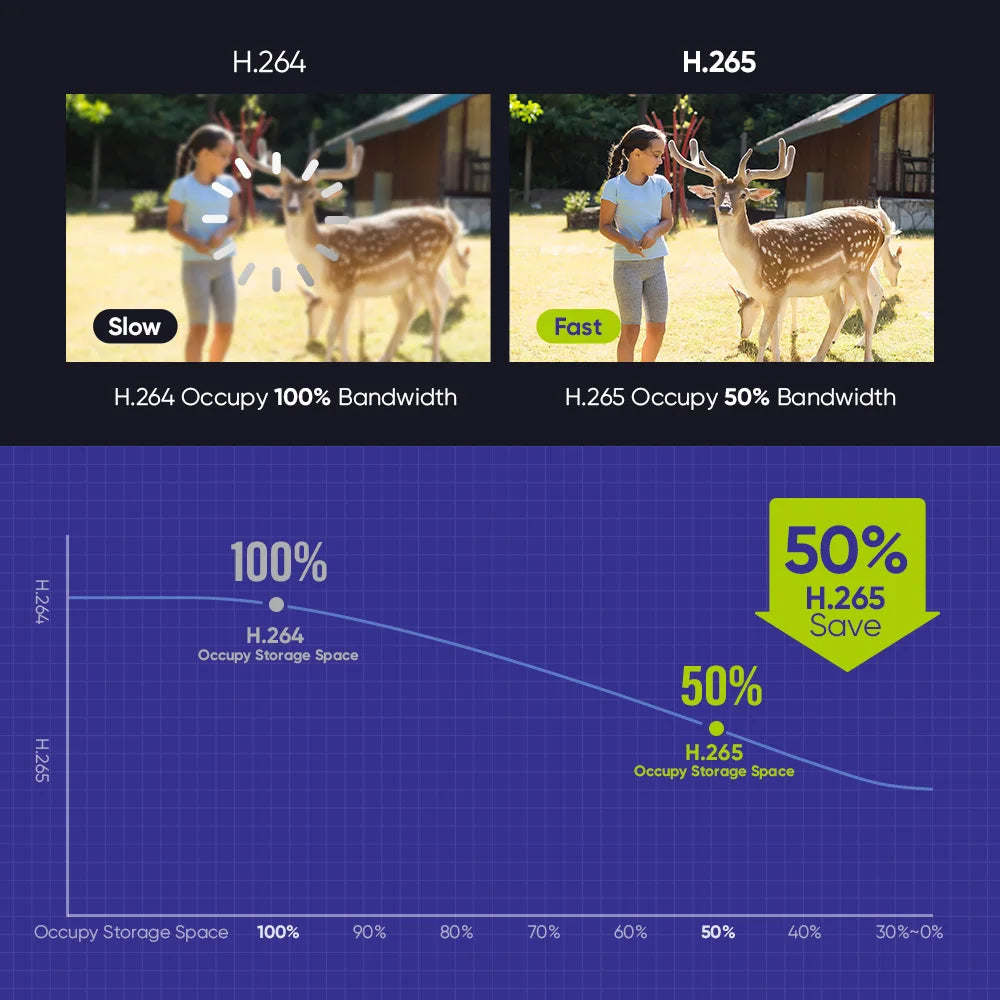

★ Advanced H.265+ Video Compression
★ Support manual/alarm/motion detection/scheduled recording mode
★ Intelligent search and playback
★ Support alarm push and remote access
★ Support onvif protocol
★ 4K(8MP)，H.265
★ Human detection and Smart Tracking
★ Vehicle shape detection (requires N98PBD/96PBK)
★ Two-way voice intercom, built-in microphone and speaker

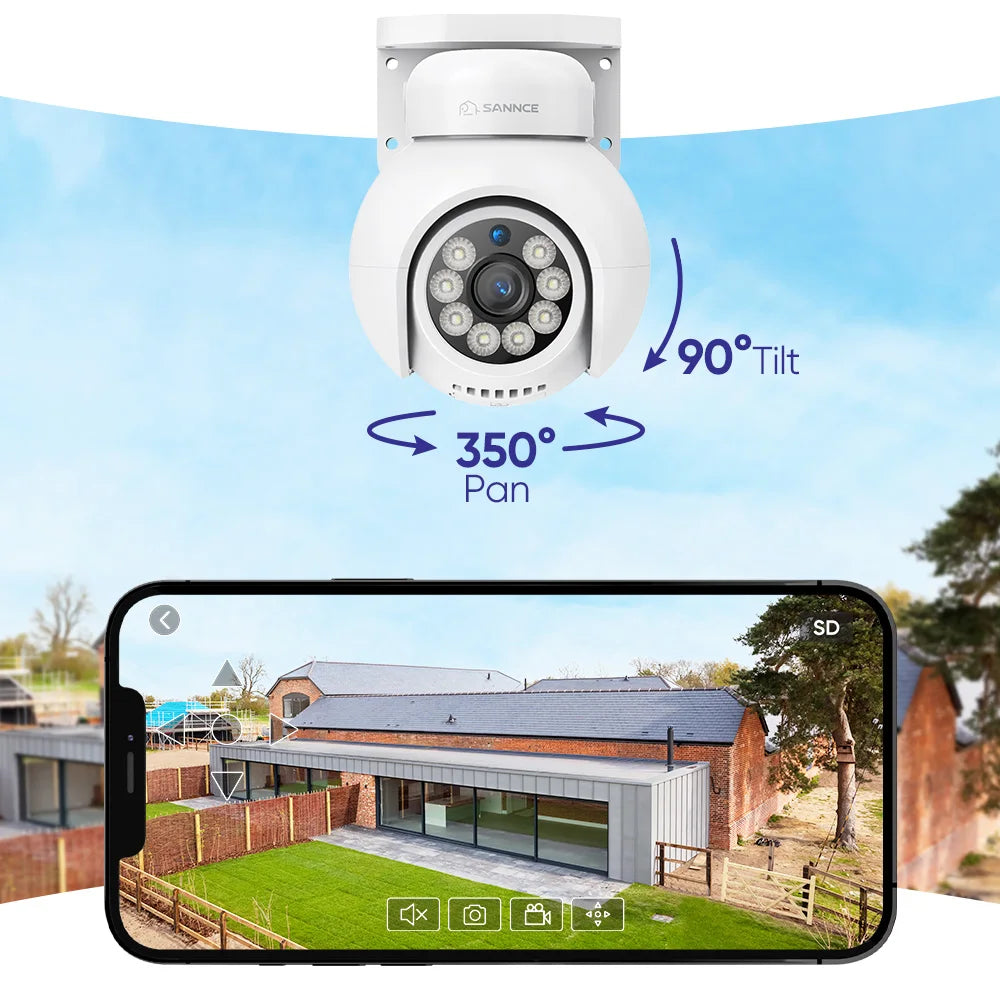

★ Pan and Tilt (level: 350° & vertical: 90 °)
★ Up to 256G TF card
★ Night vision distance 20m, Full color distance 10m
★ Support Onvif
★ IP66 waterproof
Model Number |
N96PBK |
|
Video & Audio |
Video Compression |
H.265+ |
IP Video Input |
16CH POE |
|
Video Output |
HDMI Up to 4K |
|
Audio Output |
Support |
|
Max Recording Resolution |
Up to 8M(3860x2160) |
|
Max Playback Resolution |
Up to 8M(3860x2160) |
|
Max Playback Channel |
4CH |
|
Max Playback Capacity |
4CH 3MP/2CH 5MP/1CH 8MP |
|
Onvif |
Support |
|
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 12TB capacity |
|
External Interface |
Network interface |
RJ45x1(10/100/1000M) |
PoE |
16 Ports(100Mbps, IEEE802.3at/af) |
|
USB |
USB2.0x2 |
|
General |
Housing |
Metal for main part |
Operating Power |
DC48V 3.75A |
|
Power Consumption |
10W(without HDD) |
|
PoE: Max 30W for single port | ||
Working Temperature |
32 °F – 131 °F /0 °C – 55 °C |
|
Dimensions(W x H x D) |
325x265x53mm |
|
Weight (without hard disk) |
1290g(without HDD) |
|
Model Number |
I91FT |
|
Camera |
Video Resolution |
8MP(3840×2160) |
Image Sensor |
1/2.8" Progressive Scan CMOS |
|
Video Compression |
H.264+ |
|
Video Bitrate |
32Kbps~2Mbps |
|
Audio Compression |
G711 |
|
Lens |
2.8mm |
|
Angle of View |
105° |
|
Number of Infrared/Full color LEDs |
8 |
|
Night Vision/Full color Distance |
Up to 20m/10m |
|
PT |
Horizontal 350°, Vertical 90° |
|
Onvif |
support |
|
IR-Cut Filter |
Yes |
|
Ethernet |
RJ45 |
|
General |
Housing |
Plastic |
Operating Power |
PoE (802.3af)/DC12V |
|
Storage |
Micro SD Card（up to 256GB） |
|
Operating Temperature |
-4 °F – 140 °F /-20 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Mount Option |
Wall mount/Ceiling mount |
|
Weatherproof Rating |
IP66 |
|
Dimension (L × W × H) |
135×100×133mm |
|
Weight |
368g |
|
